Automatic Strapping Systems

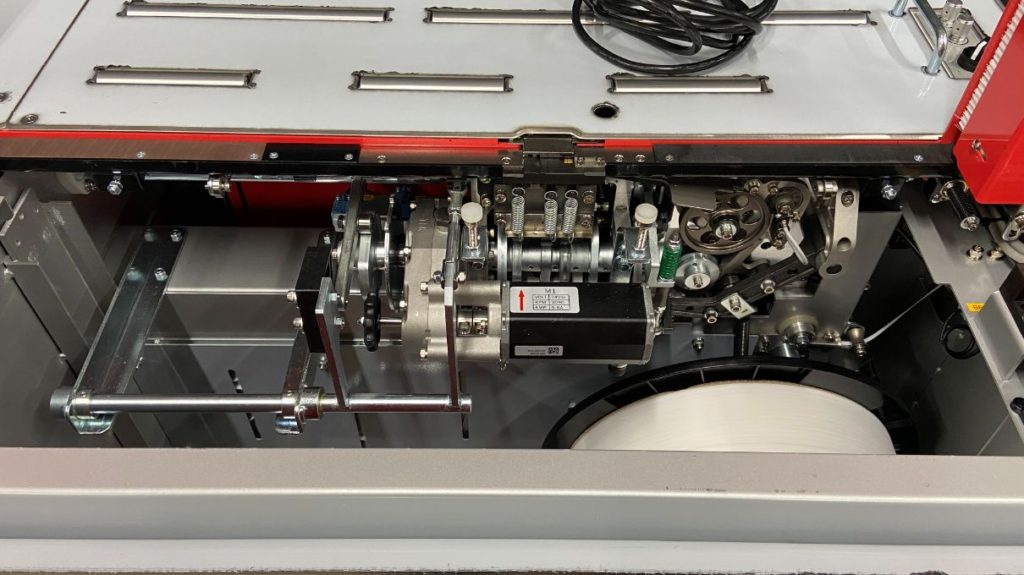

Robust & Compact Mechanical Strapping Head
The TDI 920 uses the latest DC brush less motor technology to provide the highest level of accuracy and reliability on the market. All motors are German made. The strapping head has no belts, clutches or pulleys. It is straightforward technology with few moving parts. Therefore, with 30% fewer parts, the TDI 920 requires fewer adjustments, has fewer wearable components, and requires less maintenance. The design of the TDI 920 simplifies all operations and is thereby extremely cost effective.
A world-class innovative machine with speed up to 65 straps per minute
Does not require expencive strapping like other machines on the market
Options
- Photo-eye switch
- Rear foot bar switch
- Stainless steel frame SUS 304 (TDI 920S)
- Technical Data
- P.P. Strap Requirement 5 mm, 6 mm or 9 mm (TDI 920-59)
- 12 mm (TDI 920-12)
- Speed Per Minute 65 straps (TDI 920-59)
- 60 straps (TDI 920-12)
- Strap Tension 1 kg to 32 kg (TDI 920-59)
- 1 kg to 45 kg (TDI 920-12)
- Net Weight 157 kg (TDI 920-59)
- 166 kg (TDI 920-12)
- Electrical Requirements 110V 50/60Hz 1PH
