The TD4200 Servo Vacuum Transport is the latest of our line of transport bases, designed to keep product stable as it is processed down the line.
The deck is 42" long, 28" wide, featuring a 17.75" wide roller.
Belts are adjustable, allowing you to easily change setups between jobs.
Operates on a touch screen with an adjustable position, and can be controlled from either side of the machine.
The controls allow for quick and easy changes of settings, including the ability to change the direction of the transport with a single button.
Features
- No encoder needed for inket applications.
- Servo motor with speed smoothing feature.
- PLC / HMI Touch Screen with Digital Controls for Speed, Vacuum and compatibility with our feeders. Can stop devices upstream and downstream in-line.
- Built in diagnostic screen.
- Solid deck with freely adjustable belts.
- Single thru-deck vacuum belt.
- Infeed product guides.
- Full Frame Construction, with 80/20 rails for easy adjustment of add-on systems.
- Swing arm control panel allows easy operation from all sides of the machine.
- Optional Double detect add-on.
- Optional Batch Counting System

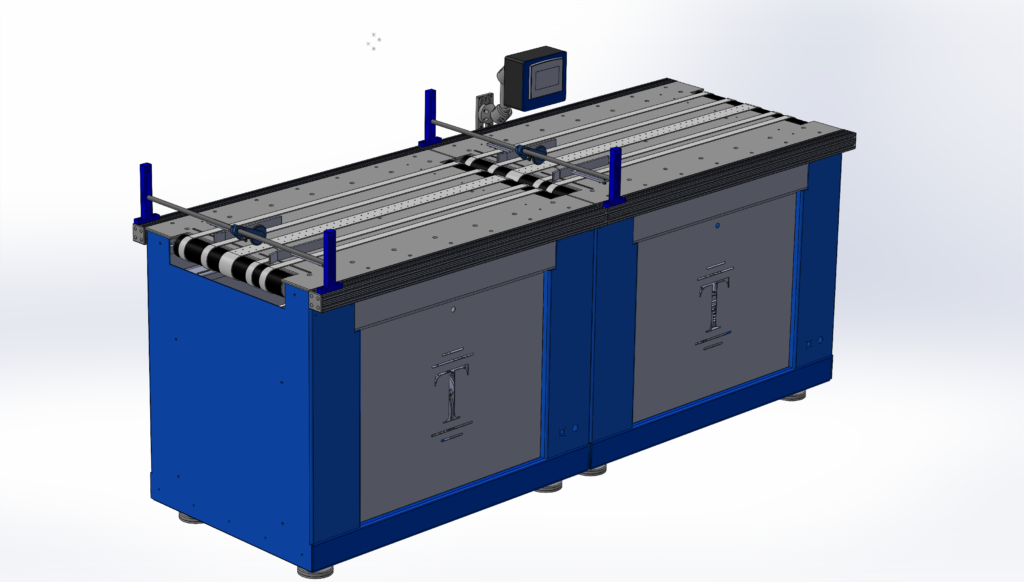

Also available in a double length 84” long model TD 4242 Servo
