TDI 1622MK L’Sealer and TDI 1808-28 Shrink tunnel built on common frame. L’Sealer adjusts from side to side to center package into shrink tunnel while tunnel adjusts up and down to match height of discharge conveyor on L’ Sealer. One power source 220V, 1 phase, 45 amps. Includes pin wheel hole punch, locking casters and 8 ft power cord.
Standard Features of the L’ Sealer
- “Micro-Knife” Band Ribbon
- Power Belted Discharge Conveyor
- Dual Magnet Clamping
- Pin Perf. Hole Punch
- Variable Dwell/Seal Time
- Variable Conveyor Time
- Stainless Steel Compensators
- Seal Size 16” W x 22” L
- Seal Head Return Cylinder
- Stainless Steel Film Clamps
- Locking Casters and Leveling Screws

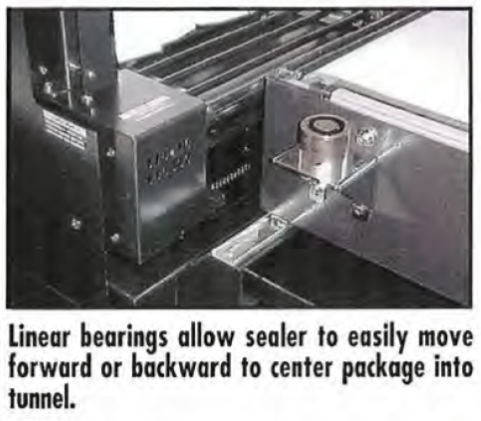

- Linear Bearings Allow Movement Forward or Backward
- Easy Load Film Cradle with Brake
- Multiple Pin Wheels Provide Air Evacuation
- Adjustable Product Loading Tray
Standard Features of the Shrink Tunnel
- Fully Re-Circulating Air Chamber
- Live or Dead Roller Rod Conveyor

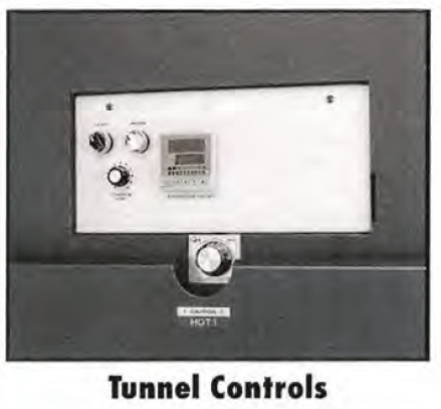

- Digital Temperature Control 0° to 400°
- Adjustable Air Velocity Control
- State of the Art AC Variable Speed Drive
- Chromed Conveyor Rollers and Shafts (No Rust)
- Automatic Tunnel Cool Down with Shut Off
- Sealed Bearings on Drive and Idler Shafts
- Chamber Size 18”W x *”H x 28” L
- Quietest Tunnel on the Market
- Heats Up to 300°F in Less Than 10 Minutes
- Thermal Overload Protection on All Motors
- Anti-Jam Safety Feature on Conveyor
- Easy Adjustable Crank Handle Allows for Tunnel Height Adjustment
- Optional “Micro Knife” Technology Uses P.T.F.E. Coated Single Piece Band Ribbon Located in Upper Seal Bar. Will Seal PVC or Polyolefin Films with out Smoke or Residue. “Micro Knife” Has a 1 Year Warranty—If it breaks, TDI will replace it “No Charge” for the Part.
- Available Options Include: Air Operated Push Button Seal Head with Automatic Cycle Timing, Powered Film Unwind, Adjustable Inverting Head and Stainless Steel Frame.
| MODEL | POWER | SHIPPING WEIGHT | SEAL
DIMENSIONS |
TUNNEL
DIMENSIONS |
MACHINE
DIMENSIONS |
MAX FILM WIDTH | PROD. RATE |
| TDI-1622MK Combo | 220v 45 amp Single Phase | 950lbs. | 16” x 22” | 28” x 18” x 8” | 103” x 32” x 62” | 20” | 10 - 14 PPM |
