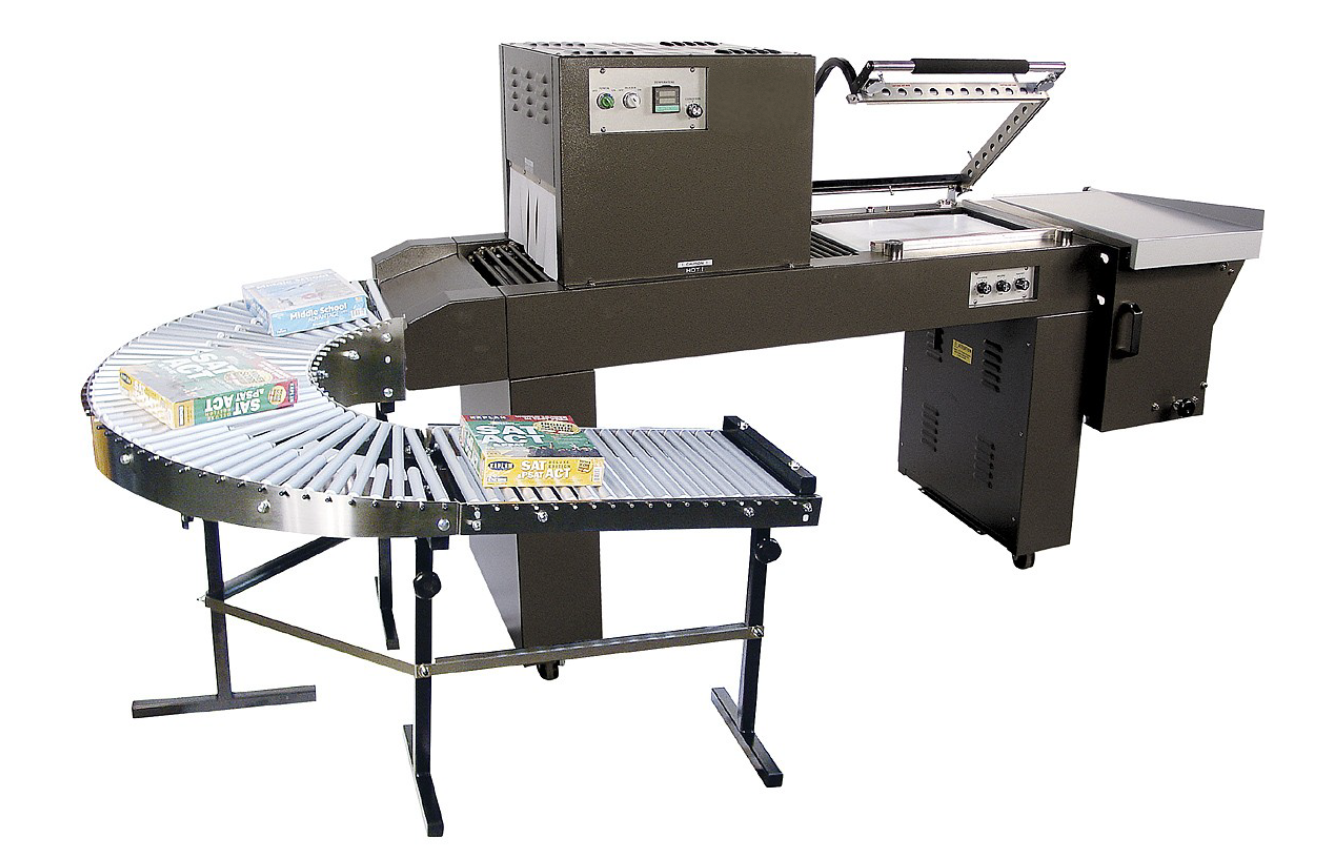

This compact model TDI-1519 ECMC L' Sealer with magnetic hold down and power discharge conveyor with attached tnnel is only 76 inchest in total length. Featuring new "Micro Knife" Technology - Will seal PVC or Polyolefin Shrink Films. Tunnel features Live Roller Rod Conveyor with fully Re-Circulating Air Chamber, AC Variable Speed Conveyor, 0 to 60 FPM, Digital Temperature Control and Automatic Cool Down with Shut Off. A great machine for low to medium production speeds of 8 to 12 packages per minute. Available in 110 volts or 220 volts.
Tunnel Features
- Fully Re-Circulating Air Chambers
- AC Variable Speed Drive, 0-60 FPM
- Live Roller Rod Conveyor
- Automatic Cool Down with Shut Off
- Digital Temperature Control 0° to 400°
- Anti-Jam Safety Feature on Conveyor
"Micro Knife" Technology
- Single Piece P.T.F.E. Band Ribbon with Round Corner Seal - Reduces Dog Ears
- Will Seal PVC or Polyolefin Shrink Film
- 1 Year Warranty on Band Ribbon
- Dual Magnet Hold Down & Power Discharge Conveyor
Pin Wheel Hole Punch
- Easy Load Film Rack
- Multiple Pin Wheels Provide Air Evacuation
- Adjustable Product Loading Tray
| MODEL | POWER | SHIPPING WEIGHT | SEAL
DIMENSIONS |
TUNNEL
DIMENSIONS |
MACHINE
DIMENSIONS |
MAX FILM WIDTH | PROD. RATE |
| TDI-1519 ECMC | 110V 20 amp OR 220v 15 amp | 460lbs. | 15” x 19” | 20” x 16” x 6” | 76” x 26” x 50” | 22” | 8 - 12 PPM |
