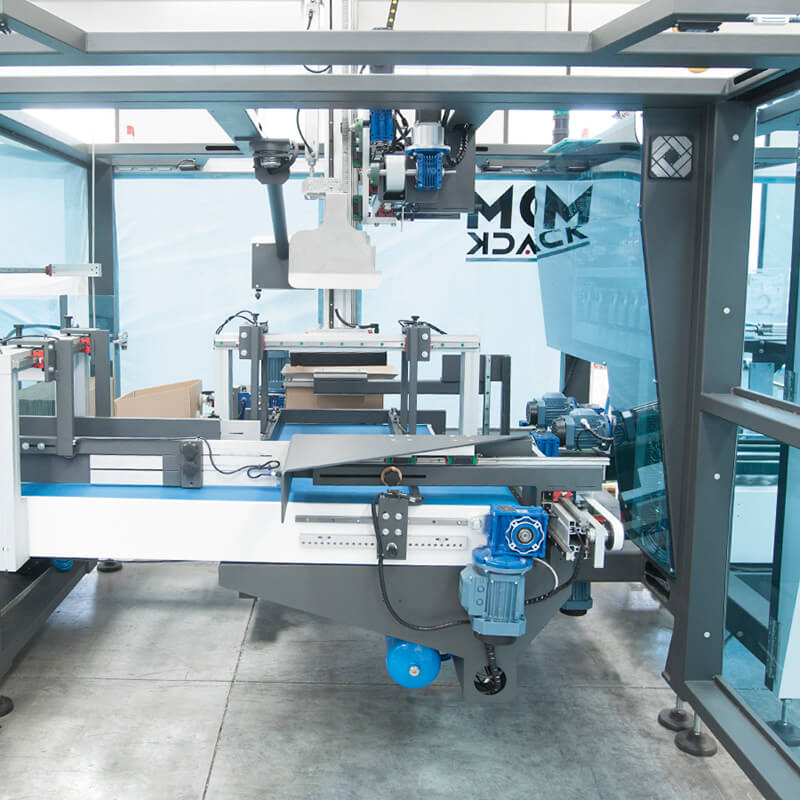

DOM Vertical Cartoning Machine

Automatic cartoning machine with filling from the top for use with American boxes or pre-formed boxes.
Automatic, motorized adjustments, very simple format changes.
The vertical cartoning machine opens and fills with pick & place, or the robotic system, the boxes in various formats and close them with adhesive tape or hot glue.
From storage placed in a facilitated position, the box is picked, opened and placed on the automatic belts that bring it to the filling zone.
The machine is a line machine and is therefore very compact in size.

Filling is carried out automatically by a system that picks the products and deposits them inside the box. The picking system varies based on the type of product.
In some cases, you can pick multiple products simultaneously. The multipack will be previously, automatically created by our grouping systems.
Don’t fear change. Automatic, automated adjustments, very simple format changes. Innovation is within your reach.
The cartoning machine with vertical filling with pick & place for various sized boxes. Simplified packaging. Transforms the problem into a solution and improves productivity.

General features

The vertical cartoning machine was designed for installation downstream of the packaging line, but also as an independent unit. The pick & place ensures fast and accurate picking of products arriving from the loading conveyor belt and precise box filling. Different types of products can be processed. They can be manufactured using different configurations inside the box according to the request, and the box itself can have various dimensions; the product arrival station, product picking and box opening are compact. Construction is robust, but at the same time they are all "separable" to allow the operator full access. Having filled the boxes, they are pushed towards the exit and the machine closes the flaps and tapes the "pads". Options available: hot glue.
Finally, a cartoning machine with all the automatic and automated adjustments.

Specific features

The strengths of the vertical cartoning machine are:
• Compactness, reduced size, high speed up to 20 boxes/minute with multiple pick & place.
• Automated adjustments.
• Fast format change, easy access to the parts to adjust, movements on the dovetail guides and recirculating ball slides.
• Siemens management PLC.

New generation cartoning machine, one of a kind. Compact, automatic with simple adjustments (all motorized).

Completely accessible with opening side doors. Separable loading and cartoning unit allow the operator access for easy maintenance.

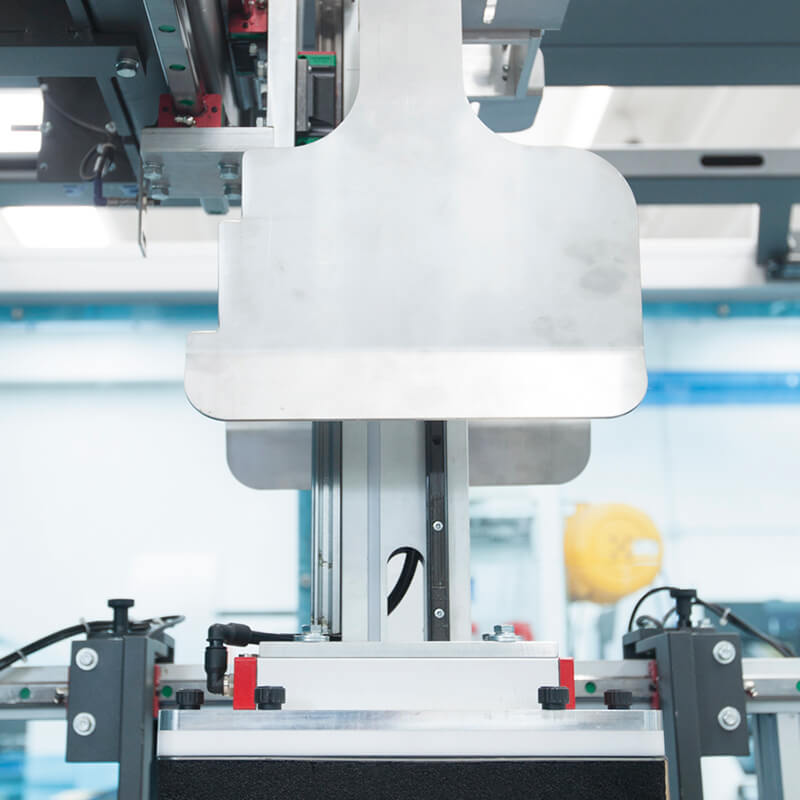

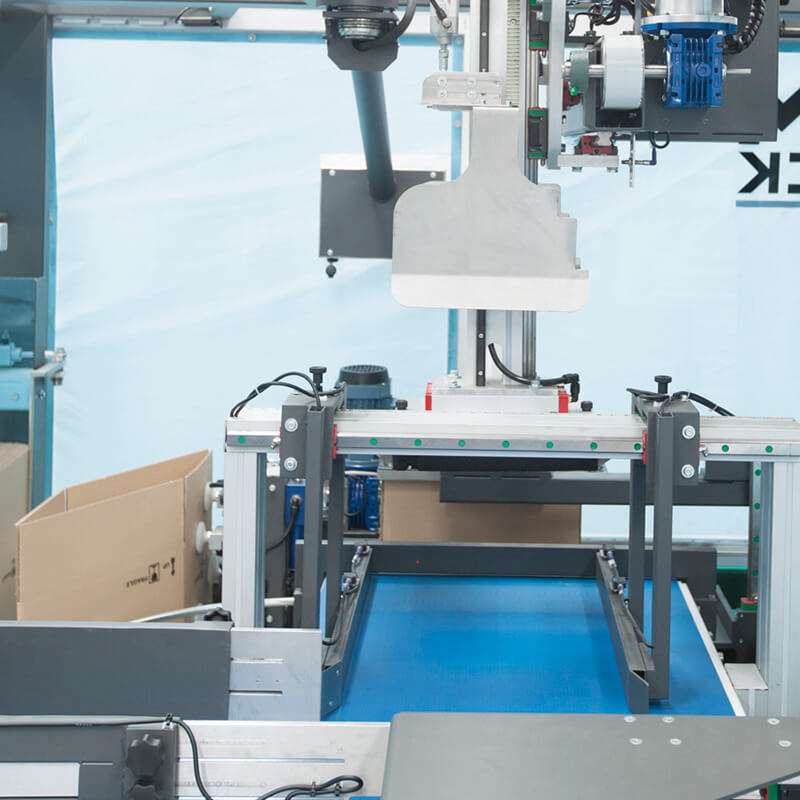

Pick and place for fast and accurate picking of products arriving from the loading conveyor belt and precise filling.

Electric cabinet in view for immediate diagnostics.

Facilitated box loading. Reduced size. Excellent operability.

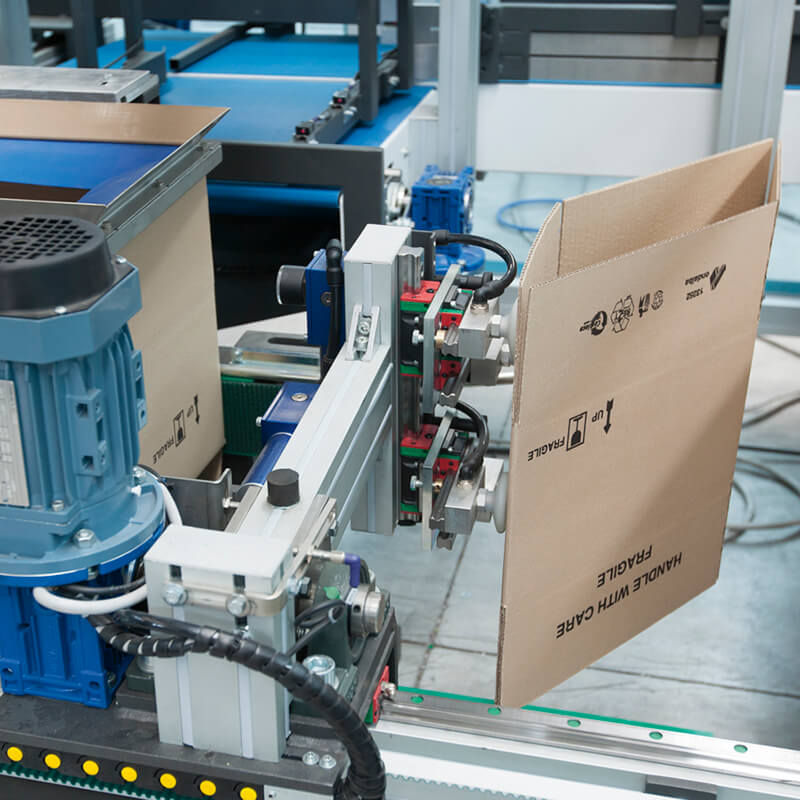

Box opening in-line or at 90°.

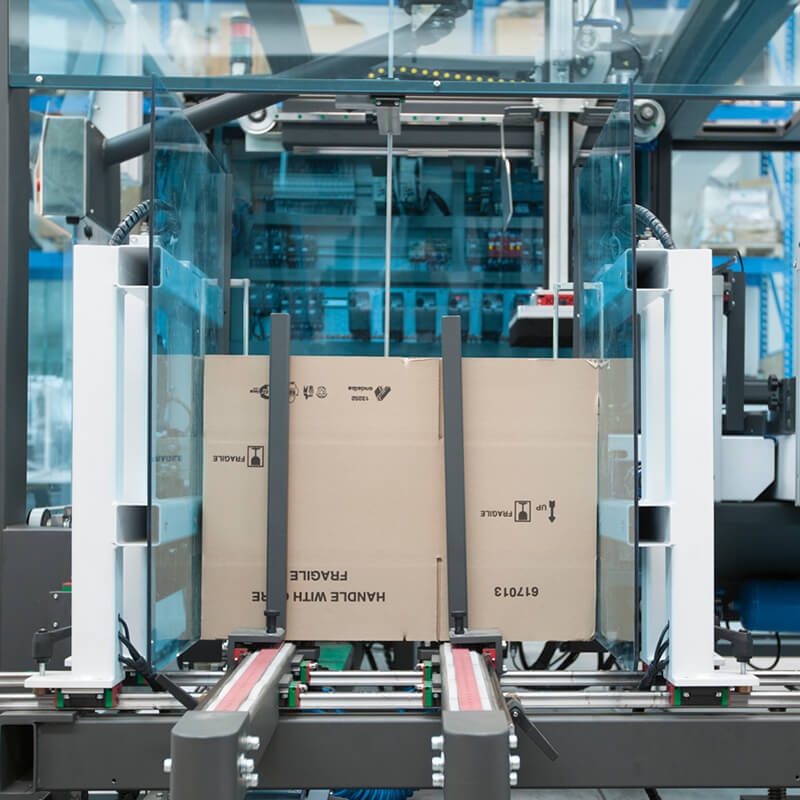

Output station with guide belts adjusted to the measurements of the box.

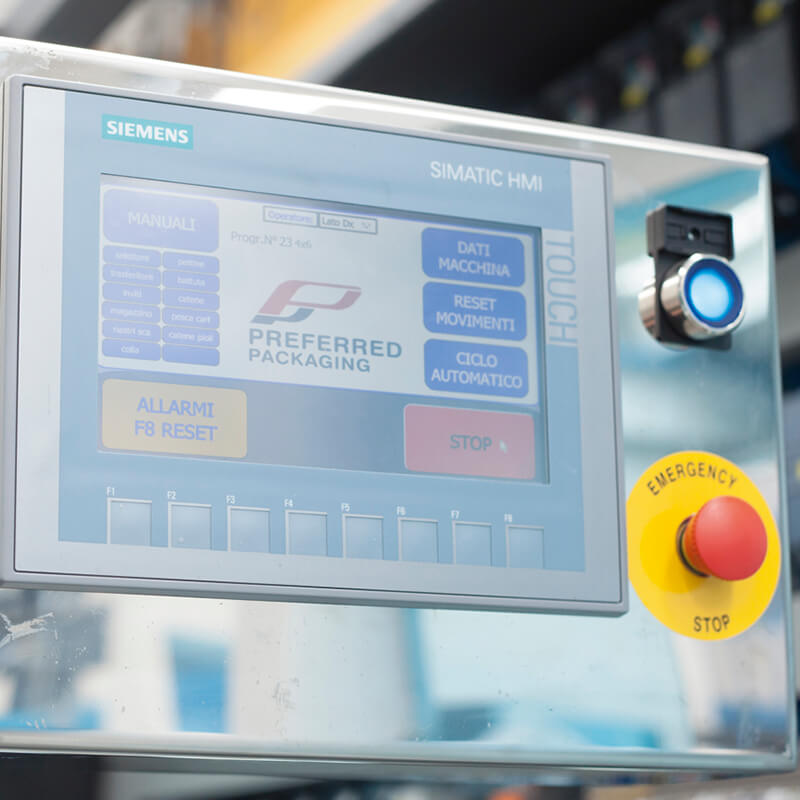

SIEMENS intuitive touch screen.
