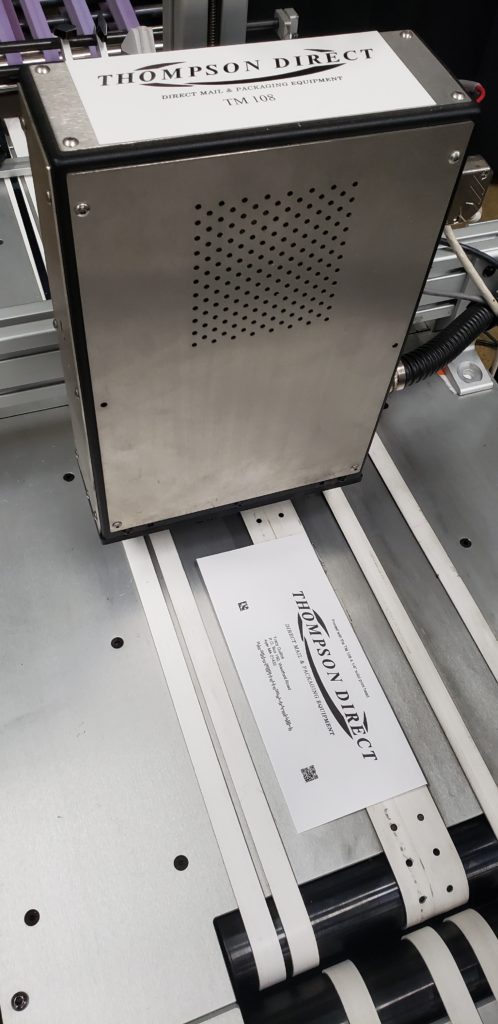

TM108 4 1/4″ Monochrome Piezo Inkjet Printer

Solid 4 1/4" Single Pass Print Head

Speeds up to 667 feet per minute (53,000 pph).

Lower cost inks

TM108 monochrome piezo inkjet printers are turnkey systems designed to print barcodes, graphics, and variable data in a single pass onto a variety of substrates. They easily attach to your press, vacuum transport, or web transport.

The combination of 108 mm (4.25”) print head width and speed up to 101 m/min (333 fpm) at 600 x 600 dpi make TM108 one of the highest performing inkjet printers available today.

TM108 printers are available for both UV curable and water-based inks. They are well suited for a variety of applications, including ticket/tag/label printing, forms printing, plastic card printing, coding and marking, and mail addressing.

FEATURES AND BENEFITS Turnkey System — The TM108 turnkey printer quickly attaches to your transport and works together as a seamless unit. A la carte components are also available

Broad Substrate Compatibility — Print permanent, durable images with UV-curable inks onto plastic, coated labels or card stock, and other difficult substrates. Use water-based inks to print onto porous substrates like paper, cardboard, or envelopes

Wider Print Heads — At 108 mm (4.25”) per print head, TM108 covers a wider print width with fewer print heads and less stitching

Fastest Piezo Inkjet — TM108 uses some of the fastest piezo print heads on the market, with a 30 kHz firing rate for UV and 40 kHz for water-based inks. The max print speed is 101 m/min (333 ft/min) at 600 x 600 dpi and 203 m/min (667 ft/min) at 600 x 300 dpi

Modular and Scalable — Choose the print width to match your application. Configure up to 16 individual head modules to print distinct areas or configure a single wide head module to print a large, contiguous image

Robust Ink System — Precise meniscus vacuum control ensures reliable print head operation and consistent print quality. Top off ink while printer is running

Flexible Software — Use our feature-rich but easy-to-use Composer job layout software, with advanced features like Multi-page PDF, Proofing, Read and Print, Production Line Mode, Offline Printing, Supervisor Mode, and Composer Remote Interface

Optional PDF work flow

Windows 11 64 Bit and windows 7 64 bit

PDF print proofing

Conditional bit maps

112 different barcodes supported

Graphic rotation and scaling



Print Head Module Configurations Print Width Ink Formulations Droplet Size Max Print Speed @ 600 x 600 dpi Max Print Speed @ 600 x 300 dpi
TM108 108 mm (4.25”) Water-based Up to 12 pL 101 m/min

(333 ft/min)

 203 m/min

(667 ft/min)

53,000 pph
TM214 214 mm (8.43”) Water-based Up to 12 pL 101 m/min

(333 ft/min)

 203 m/min

(667 ft/min)

53,000 pph
TM108-UV 108 mm (4.25”) UV Curable Up to 14 pL 76 m/min

(250 ft/min)

 152 m/min

(500 ft/min)

44,000 pph
TM214-UV 214 mm (8.43”) UV Curable Up to 14 pL 76 m/min(250 ft/min) 152 m/min(500 ft/min)

44,000 pph
