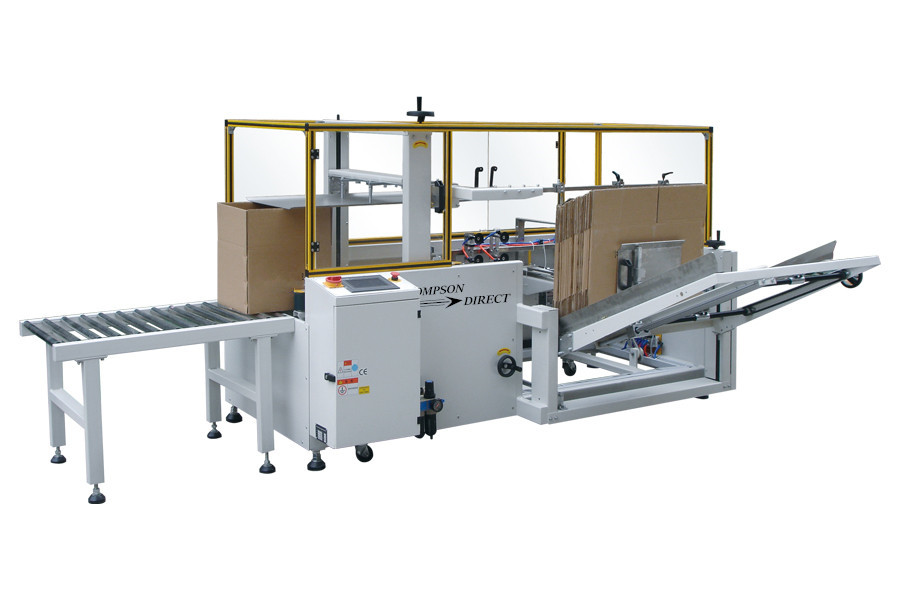

TDIPK-40H18 is a carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. Machine can do 18 carton forming and tapping in every min. very efficiency and convenient. Carton board can be loaded without stopping the machine. Packing line will not stop during the continuous packing flow. Carton packing size can be adjust manually. Easy to operate and maintain.
Technical Parameter：
| Model | TDIPK-40H18 | |
| Production speed | 18ctns/min | |
| Power supply | 110V/220V、1∮、50-60HZ 200W | |
| Carton size(mm) | L250-400xW150-350xH100-350 | |
| Air compressing | 6kg/cm³ | |
| Air comsumption | 450NL/MIN | |
| Machine dimension | L2000xW1900xH1450mm | |
| Machine weight | 550KG | |
| Adhesive tape width | 48/60/75MM | |
