5060HRT

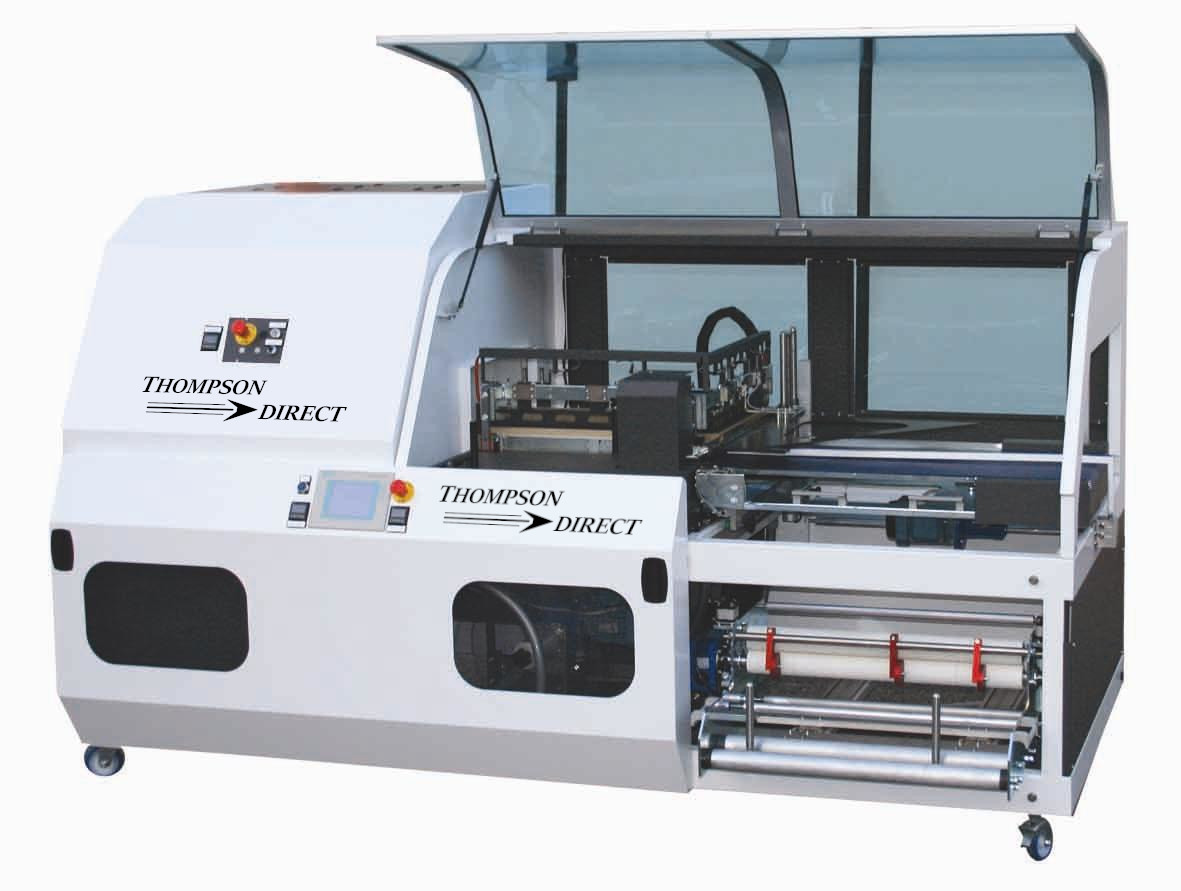

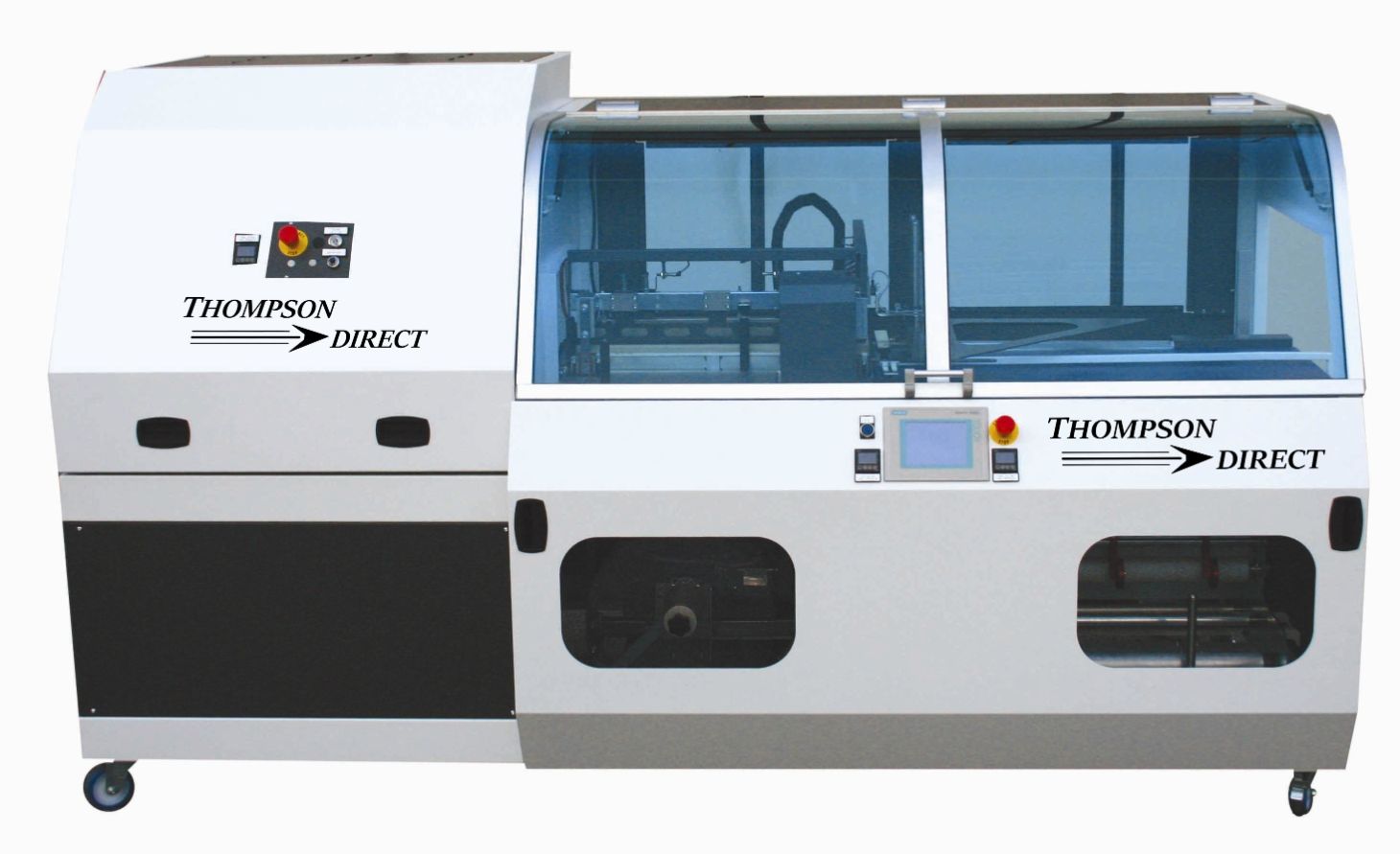

FULLY AUTOMATIC L’ SEALER MODEL 5060HRT COMBINATION
     MACHINE  WITH  SEALER AND TUNNEL BUILT ON COMMON FRAME

STAT. 1  SHRINK WRAPPING L SEALER F5060HRT

• Heavy duty steel frame construction
• Inverter system
• In feed  transport  by  roller  driven with frequency and speed adjusted
• Maintenance free sealing system, continuously heated with integrated separating knife without sealing bands, separating wire or P.T.F.E. heat tape
• Display control with step by step product set up and operation interface
• L sealer bar ( one unit)  only bar that going down vertically on the film that wrap the product, it puts the same pressure everywhere on the film, in every single parts!
• Closing conveyor for running small packages
• Hot knife cross seal bar with digital temperature control
• Automatic product separation conveyor for randomly spaced products
• Automatic motorized inverting triangle
• Automatic motorized cross seal and side seal height adjustment
• Siemens PLC Control and solid state electronics allows for easy integration of feeders, collators and accumulators.
• Variable speed control
• Pinwheel film perforator air evacuation system- no film tearing
• Self diagnostic feature will alert operator of problem
• Programmable memory to store 30 package sizes
• Easy access electrical control panel with solid state relays and contactors
• Powered film scrap wind up with built in alarm when full
• Easy load film rack- no lifting of roll overhead
•   No product- no cycle automatic machine stop
•  Horizontal and vertical photo eye provide automatic adjustment of package length
•  Machine is equipped with lexan security cover
•  CE approved.

TUNNEL FEATURES INCLUDE:

• • Fully re-circulating Air Chamber
  • Live Roller Rod Conveyor
  • Solid State digital Temperature Control
  • AC Variable Speed Drive
  • Independent Heater on/off switch
  • Automatic Cool down with Shut off
  • Tunnel can be moved by handles horizontally to be centered with products

BENEFITS:

• • Touching belt
  • Touch screen
  • 5 Inverters (Every motor is supplied with one Inverter)
  • Motors: ABB
  • Electronics: SIEMENS
  • The sealing bar is vertical instead of having the ‘scissors’ shape’
  • The operator is allowed to control, to increase or decrease the speed of the machine.

STANDARD FEATURES MACHINE MODEL 5060HRT:

      COMPONENTS:

Motors: ABB
Reducers: MOTOVARIO
Bearings and Supports: SKF
Pneumatics' components: KUHKNE
PLC: SIEMENS
Electro-mechanic's components: MITSHUBISHI
Inverter: MITSUBISHI
Rele': OMRON
