SHRINK WRAP SYSTEMS

We offer a full line of shrink wrap machines. In addition, we offer shrink wrap.




One Step Machines

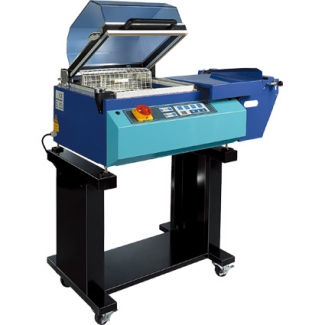

    EKH-238

    TDI 238 Spec Sheet

    POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
    MAX. CONSUMPTION POWER 3.2Kw
    EFFECTIVE POWER CONSUME 1.3-1.9Kw
    SEALING DIMENSION 280mm (D) X 380mm (L)
    MAX. HEIGHT OF PACKAGE 120mm
    MACHINE DIMENSION 1020mm (L) X 620mm (W) X 550mm (H)
    MAX. DIMENSION OF FILM 360mm X Ø250mm

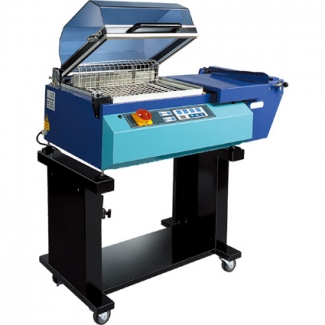

    EKH-346

    TDI - 346 Video

    POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
    MAX. CONSUMPTION POWER 3.2Kw
    EFFECTIVE POWER CONSUME 1.3-1.9Kw
    SEALING DIMENSION 320mm (D) X 460mm (L)
    MAX. HEIGHT OF PACKAGE 120mm
    MACHINE DIMENSION 1120mm (L) X 660mm (w) X 550mm (H)
    MAX. DIMENSION OF FILM 400mm X Ø250mm

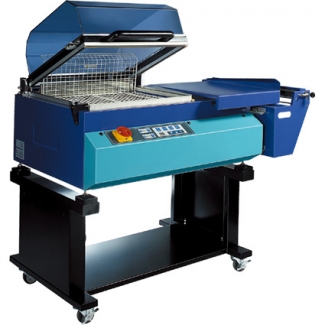

    EKH-455

    TDI 455 Spec Sheet

    POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
    MAX. CONSUMPTION POWER 3.77Kw
    EFFECTIVE POWER CONSUME 1.6-2.3Kw
    SEALING DIMENSION 420mm (D) X 550mm (L)
    MAX. HEIGHT OF PACKAGE 250mm
    MACHINE DIMENSION 1320mm(L) X 820mm (W) X 645mm (H)
    MAX. DIMENSION OF FILM 600mm X Ø250mm

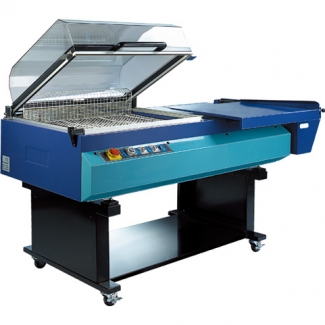

    EKH-680

    TDI 680 Spec Sheet

    Parts Book

    POWER SUPPLY 220/380/400V., 50/60HZ., 3-PHASE
    MAX. CONSUMPTION POWER 5.3Kw
    EFFECTIVE POWER CONSUME 2.3-3.4Kw
    SEALING DIMENSION 620mm (D) X 800mm (L)
    MAX. HEIGHT OF PACKAGE 250mm
    MACHINE DIMENSION 1575mm (L) X 1020mm (W) X 645mm (H)
    MAX. DIMENSION OF FILM 800mm XØ250mm

Fully Automated

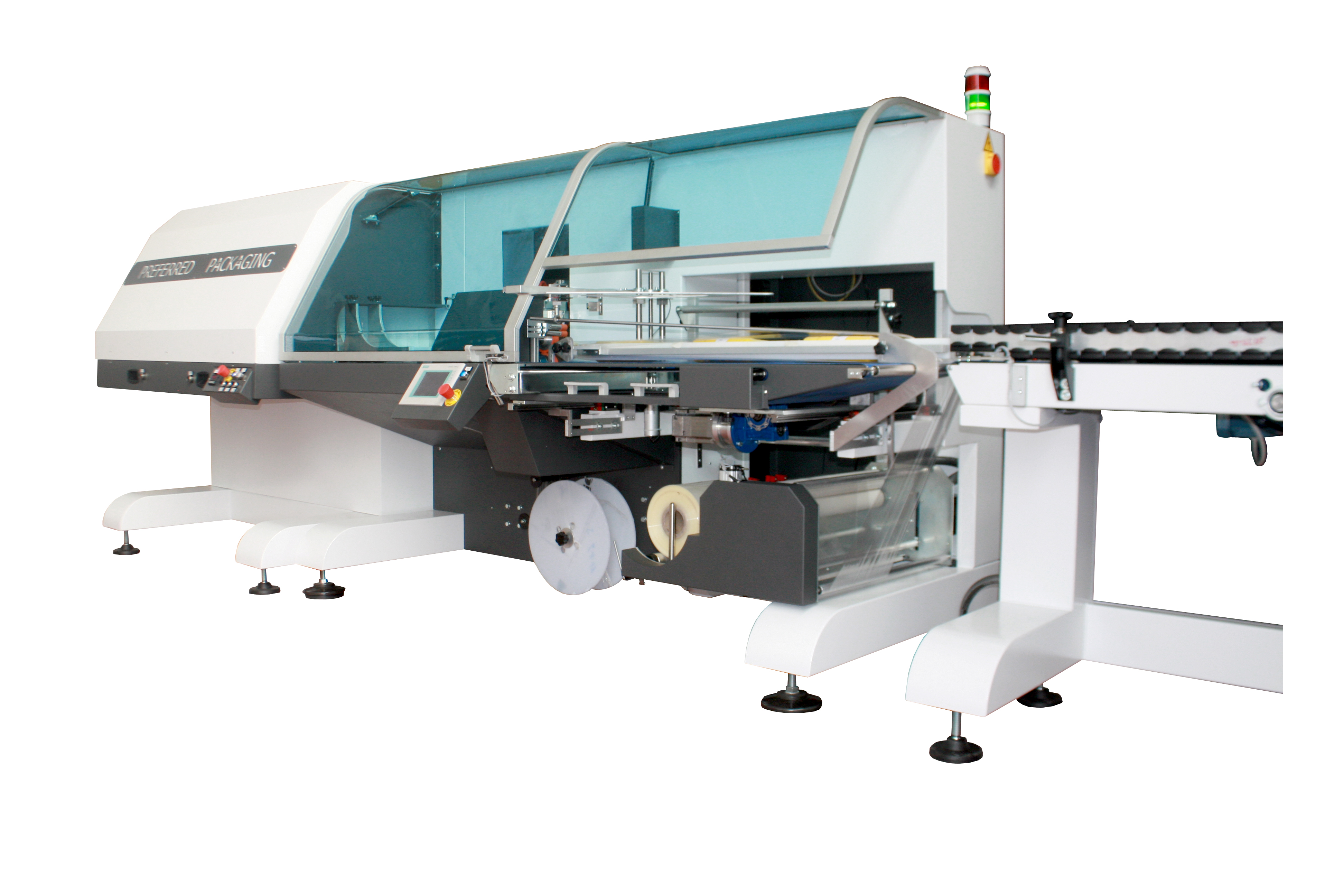

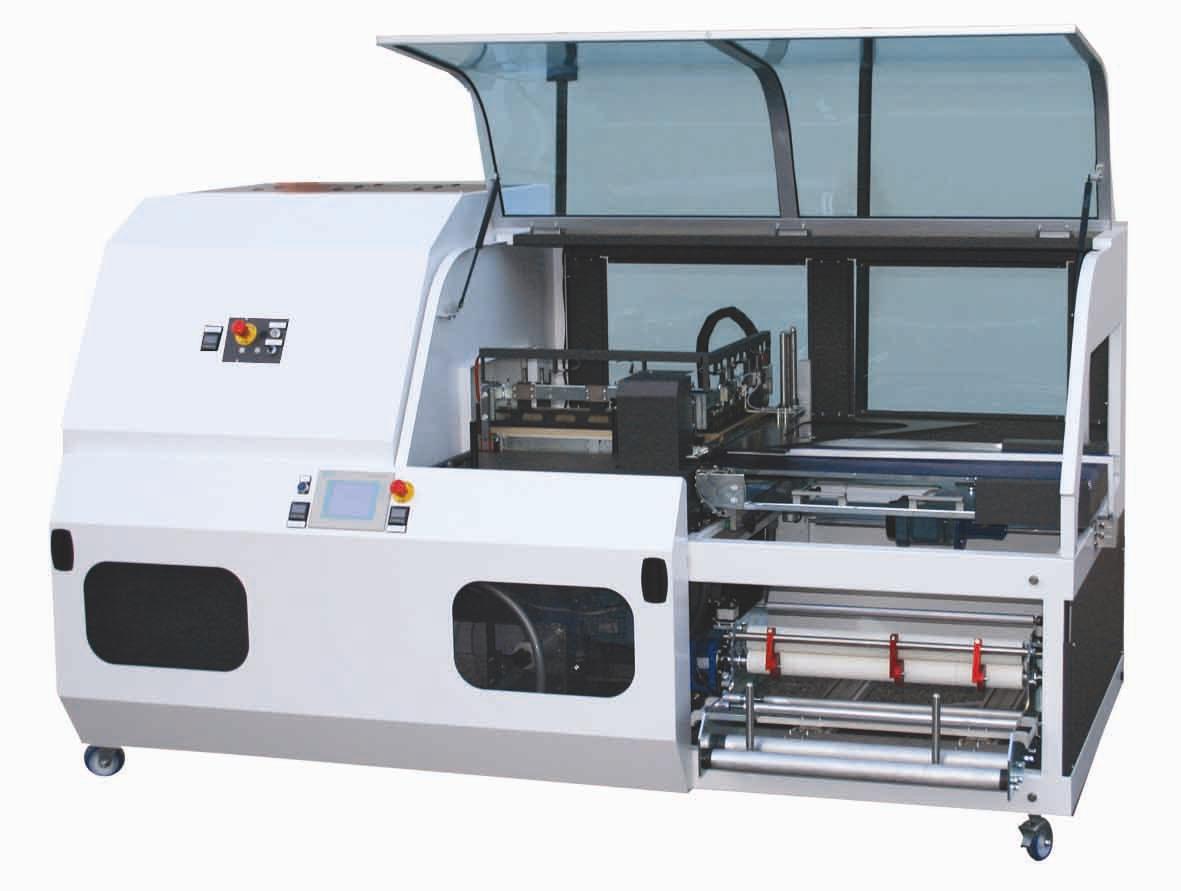

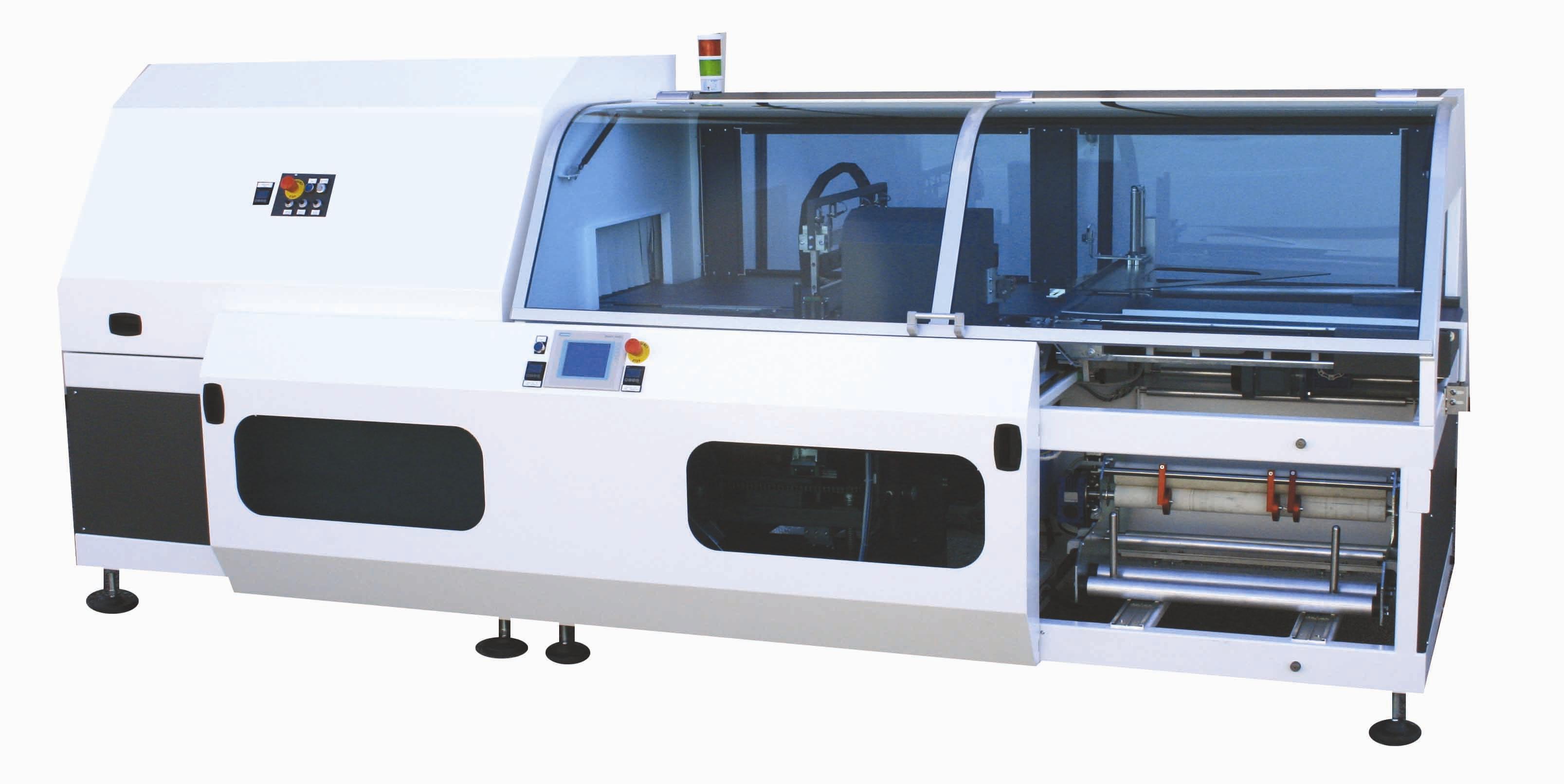

F5000 High Speed Continuous Box Motion Side seal




L - Bar Systems

    TDI455 MT

    TDI - 455 MT Combo system
    Spec Sheet

    POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
    MAX. CONSUMPTION POWER 9Kw
    SEALING DIMENSION 400mm (W) X 550mm (D)
    TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
    MAX. FILM ROLL DIMENSION 600mm X Ø300mm
    WORKING PLATE HEIGHT 900mm
    MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
    MAX. PACKING HEIGHT 150mm
    MACHINE WEIGHT 400Kg

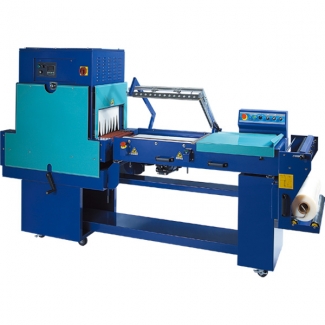

TDI 455PT

TDI 455PT Spec Sheet

POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
WORKING PLATE HEIGHT 900mm
MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
MAX. PACKING HEIGHT 150mm
MACHINE WEIGHT 400Kg

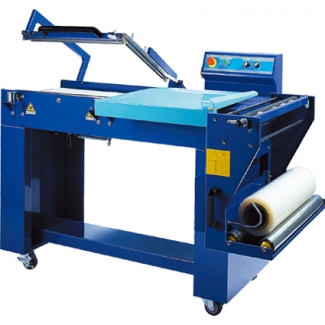

TDI 455M

TDI 455M Spec Sheet

POWER SUPPLY　110V/220V, 50HZ/60HZ, 1-PHASE
MAX. POWER CONSUMPTION　1Kw
SEALING DIMENSION　400mm (W) X 550mm (D)
MAX. FILM ROLL DIMENSION　600mm X Ø300mm

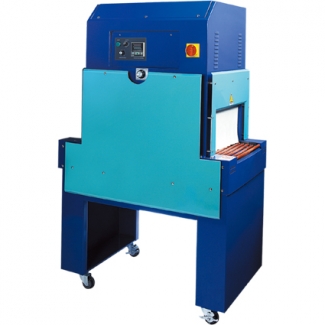

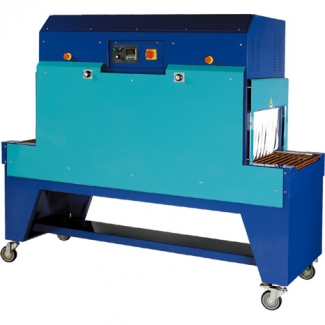

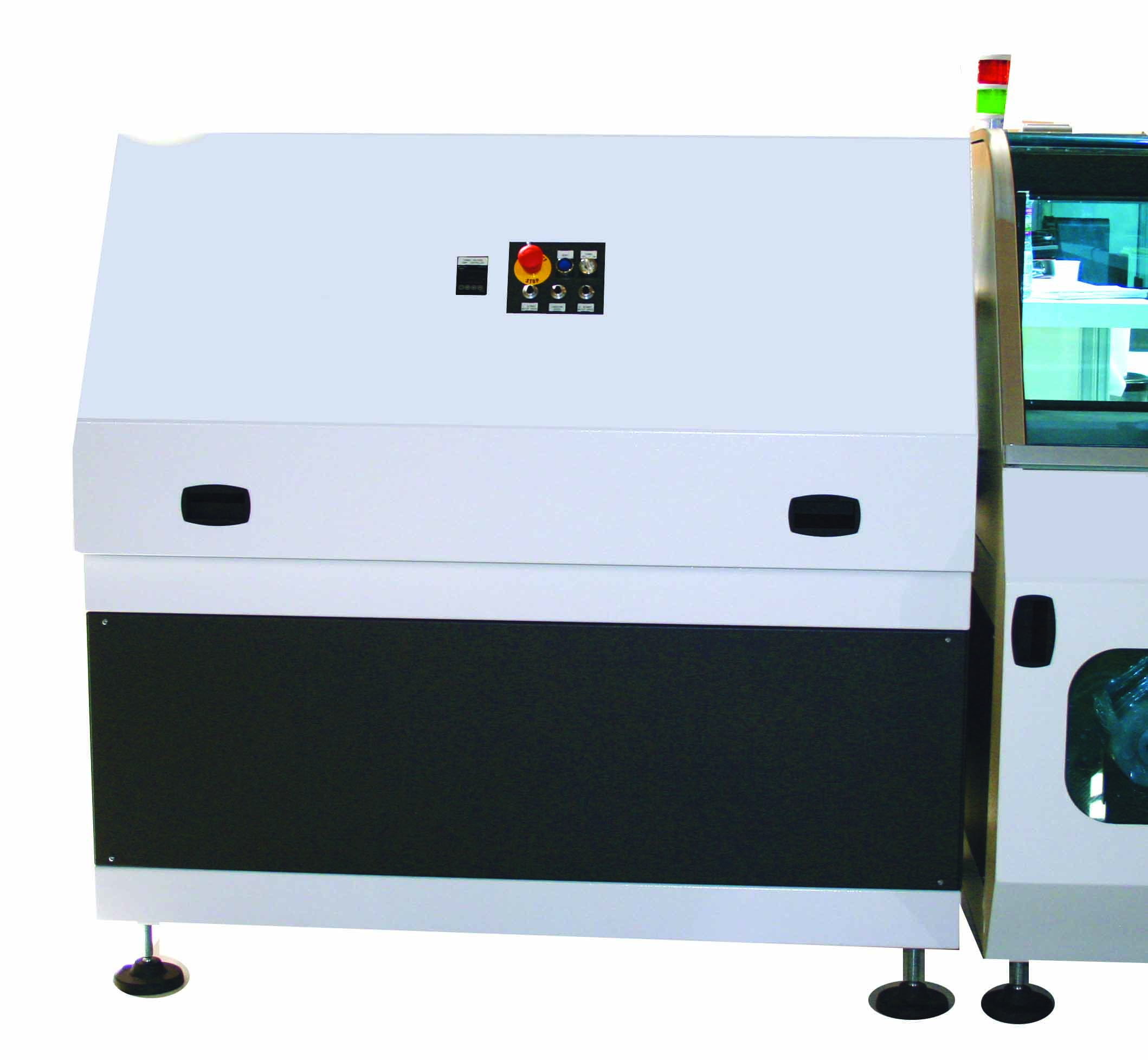

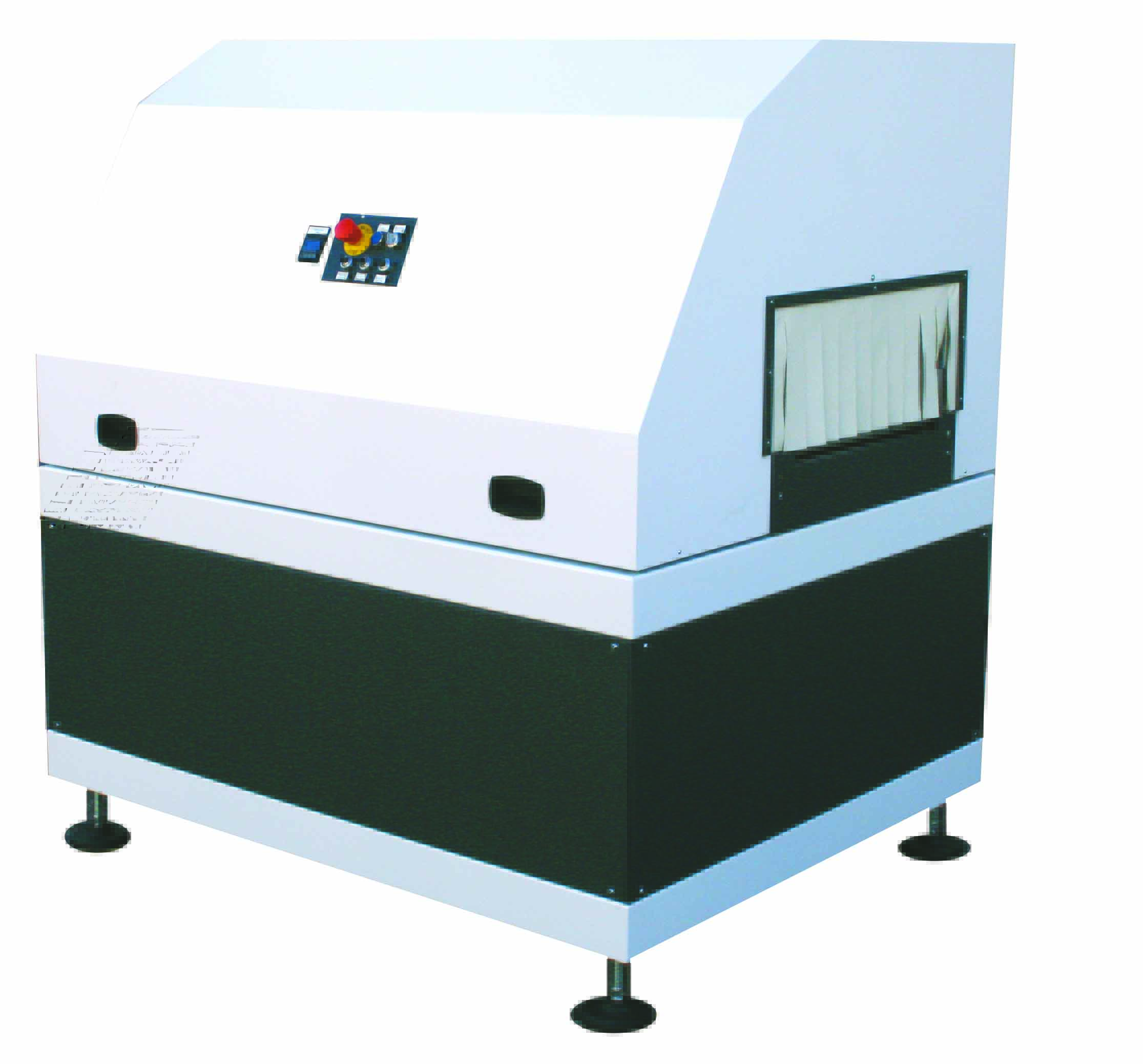

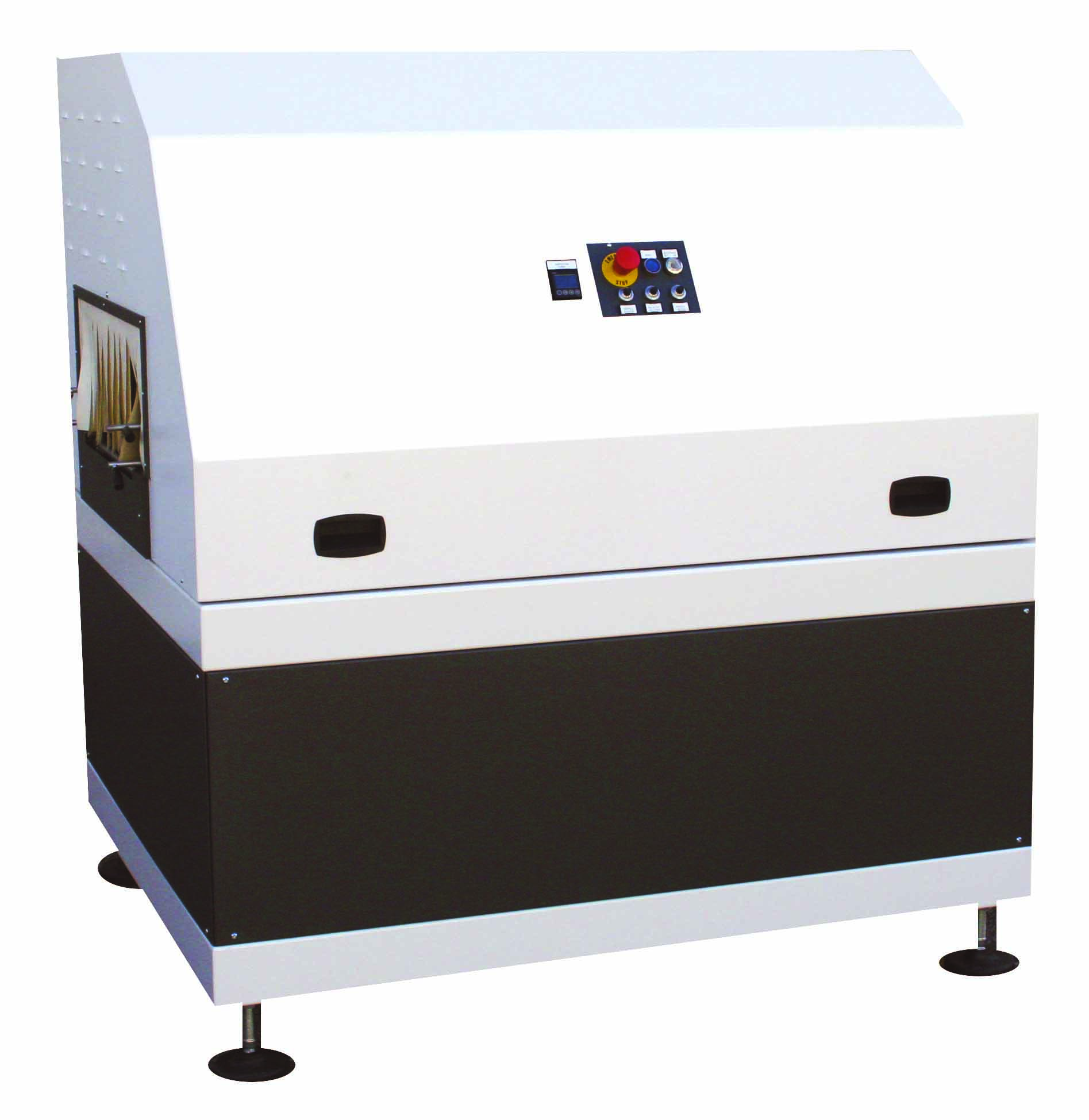

Tunnels
