The high resolution TM2 printer provides a versatile, cost-effective solution to meet the need for variable data printing on a range of coated and uncoated substrates. Capable of printing addresses, barcodes, 2D codes, QR codes, numbering, logos and graphics, the IM2 suitable for mailing and addressing applications, as well as labels, tickets, security, plastic cards and business form applications.
The very small footprint and modular design of the TM2 means that it is easily and quickly integrated into mailing lines, webs and card lines.
Very small footprint
Supports up to 600dpi print resolution
High speed capability - up to 1000ft/min at 300dpi
Print ready in under 5 minutes
PDF Workflow
Read and Print ready
SOLID DESIGN
Simplicity is the key to the TM2 Design. From the Patented Ink Delivery system to the Electronics, Housing and interface connectors, the TM2 has been designed with ease of use in mind. The TM2 uses a single pump and sensor to measure the ink pressure and to pump the ink directly from the supply to the print head as ink is being consumed while printing. Since there is no air reservoir for meniscus control there are no issues with ink flow, or flooding air sensors or valves (there are none). With the head mounted directly to the manifold, the design greatly reduces the number of connections, tubes and failure points where leaks can occur. The TM2 incorporates an integrated manifold heater that can preheat the ink before it reaches the head allowing the ink to flow better and operate much more reliably at higher speeds, resulting in less nozzle outs. The head can be changed in the field without disassembling the ink delivery system and or any of the ink delivery connections. The system can be installed, primed and operational in less than 1 hour.
Furthermore, the warm up time—under five minutes—has been developed to be as quick as possible to maximize productivity.
HIGH QUALITY, HIGH SPEED
The TM2 supports up to a 600 dpi resolution giving you maximum quality at all times; there is little that cannot be printed with incredible sharpness.
For all your graphics and mail applications the Imaging Monster is capable of ultra fast speeds: to meet your productivity goals
OPERATION AND MAINTENANCE
Start up—Print ready can be achieved within five minutes, and job changeover is possible within seconds.

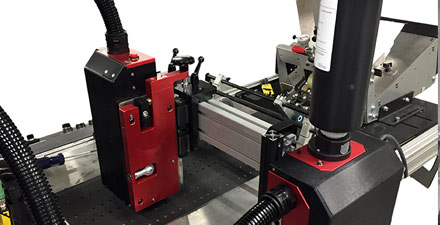

Print head purging—With print head mounting brackets moving between off-line purging and printer ready position, fast make ready can be achieved effortlessly.
