2600 Pinless Forms Cutter


Easy optical mark set-up means that form registration
can be done using any repeatable print area anywhere
on the form, removing the need for the printer to add
specific registration marks.

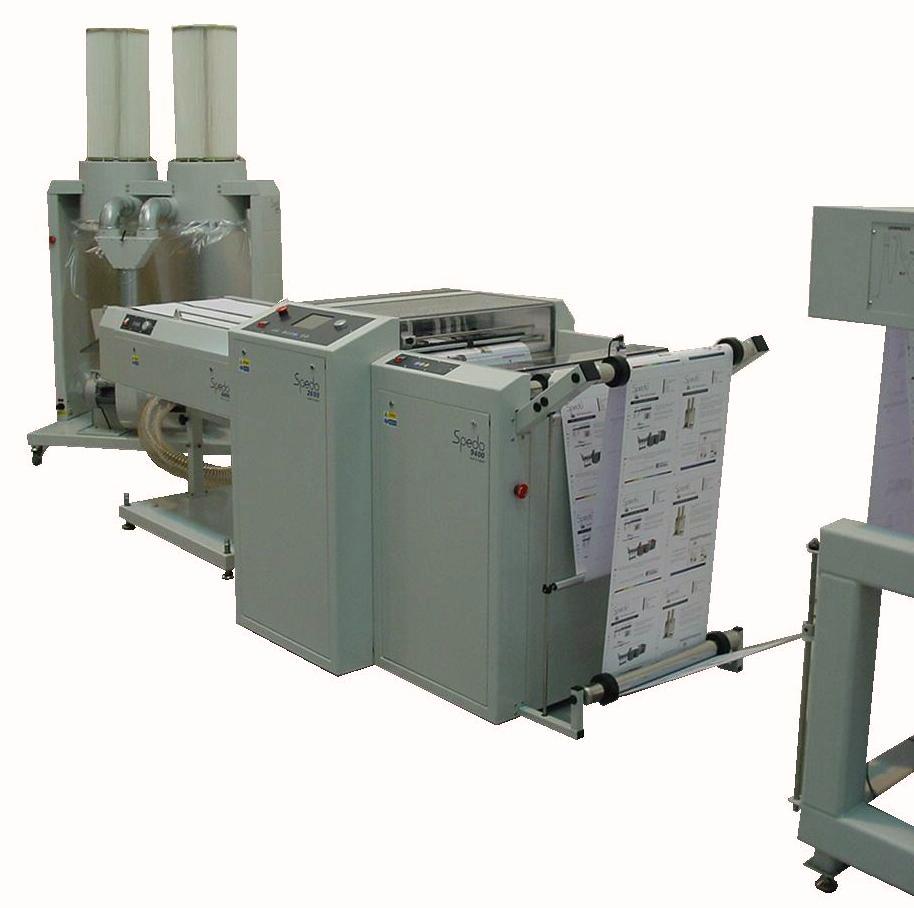

The SPEDO 2600 high performance forms cutter surpasses the boundaries of continuous forms processing whilst improving the flexibility, accuracy and reliability demand by today's applications.

It uses the latest generation of Arle Tech's well proven control system. This system has now been refined and expanded to provide spare capacity for the users every need. O.M.R., O.C.R., Bar Code Reading, External Speed Control, Systems Interface, Time Management and Internet Access.

Product Features

  • Pinless or Pinfeed
  • GUTTER CUT
  • MARGIN TRIMMERS
  • MARGIN TRIM CHOPPERS
  • CENTER CUTTER
  • ANTI-STATIC WASTE BIN
  • AUTOMATIC WASTE REMOVAL UNIT
  • PAPER STACK TRAY & PAPER STOPS
  • CONVEYOR STACKER
  • PRE-SET COUNTER INCLUDING PAUSE AND STOP
  • LINE FEEDS OF 1/6", 1/8", 1/10", 1/12" AND 1/16"
  • JOB MEMORY
  • MULTI-FORMAT PROGRAMMING
  • ELECTRONIC CUT POSITION VERNIER
  • AUTO READY AND STANDBY MODE
  • OPTICAL MARK RECOGNITION
  • OPTICAL CHARACTER RECOGNITION
  • BAR CODE READING
  • EXTERNAL SPEED CONTROL
  • EXTERNAL SYSTEMS CONTROL
  • NO BLADE FUNCTION
  • ADJUSTABLE FEET 0-50MM
  • FORMS KICK-OUT ROLLER
  • LOOP CONTROL INPUT
  • CUT BEFORE FEED MODE

120m/min [400ft/min] with Single
Blade Option

100m/min [328ft/min] with Double
Blade Option [7.8mm]


Product Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Requirements

230 V / 690 W

Overall Dimensions

550mm X 980mm X 1070mm
W x L x H

Machine Weight

140 Kg

Video Demos:

Click here for videos

Click here for 2600 MK2  parts manual

 Click here for 2600 MK2 operators manual issue 5

 Click here for 2600 service manual
